Virtual Private Cloud (VPC) deployment
Telmai’s Virtual Private Cloud (VPC) deployment ensures that all Telmai services are hosted securely within your own cloud environment. The architecture integrates seamlessly with your existing infrastructure, enabling data-in-place monitoring while maintaining compliance with your organization’s security, governance, and privacy policies.

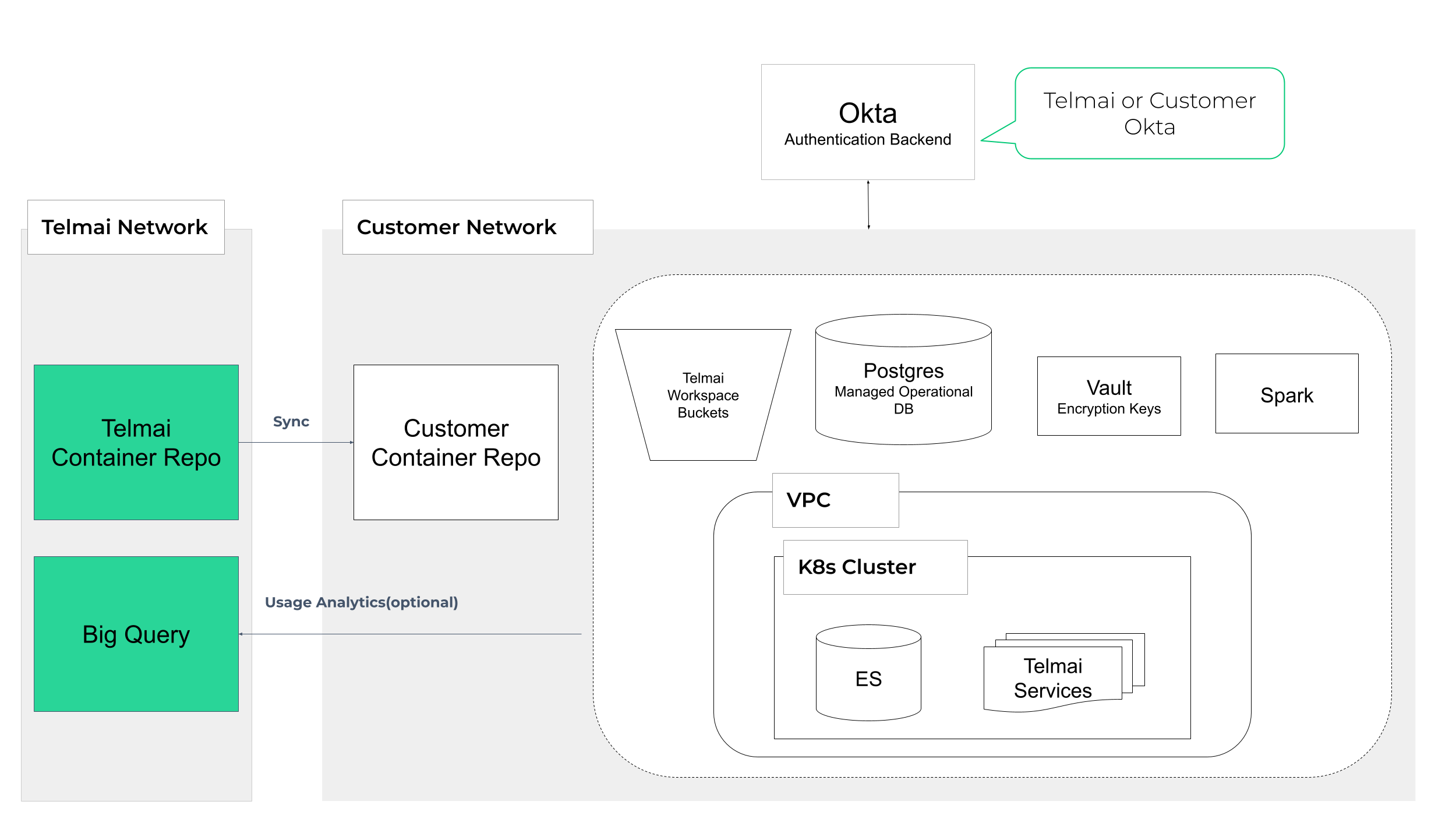

Key Architectural Components
A typical Telmai VPC deployment includes the following cloud-native components, which are selected for their scalability, reliability, and portability across major cloud providers.
Kubernetes (K8s) Cluster
Hosts Telmai services. Allows for scaling based on usage, simplified operations (auto-recovery), and ease of upgrades with no downtime.
Azure Kubernetes Service (AKS), Google Kubernetes Engine (GKE), Amazon Elastic Kubernetes Service (EKS)
Elastic Search (ES)
Stores data profiling data. Enables fast data retrieval via API and UI.
Managed or hosted ES on K8s
Spark Engine
Handles the analysis of large datasets at scale with optimized cost and performance. Used to run Telmai data scan jobs.
Azure DataBricks, Databricks or Dataproc (GCP), Databricks or EMR (AWS)
Postgres
Stores results and configurations.
Azure Database, Cloud SQL (GCP), AWS RDS
Key Vault
Used to store encryption keys.
Azure Key Vault, Secret Manager (GCP/AWS)
Container Repository
Stores Telmai binaries. Used for deploying Telmai images.
Azure Container, GCP Artifact Registry, AWS ECR
Authentication Backend
Manages authentication, often utilizing existing services, i.e Okta.
Okta
Deployment Workflow
Telmai provides Helm and Terraform scripts to automate the whole deployment lifecycle.
Infrastructure Setup Provision cloud resources (K8s cluster, databases, vaults, etc.) within your VPC.
Setup Validation Validate connectivity, component availability, and Kubernetes configuration.
Telmai Installation Deploy Telmai Docker images, configure services, and initialize the application.
You can deploy Telmai from Telmai’s registry or from a customer-controlled container repository, depending on your organization’s security policy.
Data Handling and Retention
Telmai handles several categories of data, each subject to specific definitions and guaranteed retention policies. Telmai guarantees safe and complete deletion of data after the required retention period.
Data Categories
Customer Data
Data (sensitive and non-sensitive) that Telmai monitors. This may be the original records or data decomposed into individual values for monitoring.
Varies (Sensitive or Non-sensitive)
Derived Data
Results (numbers) from statistical calculations performed on Customer Data.
Non-sensitive
Data Metrics
Derivatives used for analyzing trends in data. Examples include percentage of complete records or number of records.
Non-sensitive
Metadata
Meta information about data, such as data source names, attribute names, and create/update dates.
Non-sensitive
Sensitive User Data
Personally Identifiable Information (PII), such as usernames and passwords.
Sensitive
Non-Sensitive User Data
User identification and roles .
Non-sensitive
Retention Policies
Telmai maintains strict, defined periods for the retention of data based on its classification:
Data Type
Retention Policy
Notes
Customer Data
Can be configured to be purged as soon as metrics are calculated (typically 1 hour).
If no explicit retention policy is set by the customer, this data is stored for up to 30 days and then permanently deleted .
Derived Data
Stored for up to 30 days.
If no explicit retention policy is set by the customer, this data is stored for up to 30 days and then permanently deleted .
Data Metrics
Stored for up to 360 days.
Used for long-term trend analysis.
Metadata and User Data (Sensitive & Non-Sensitive)
Stored indefinitely.
This data is retained until explicitly requested for deletion.
